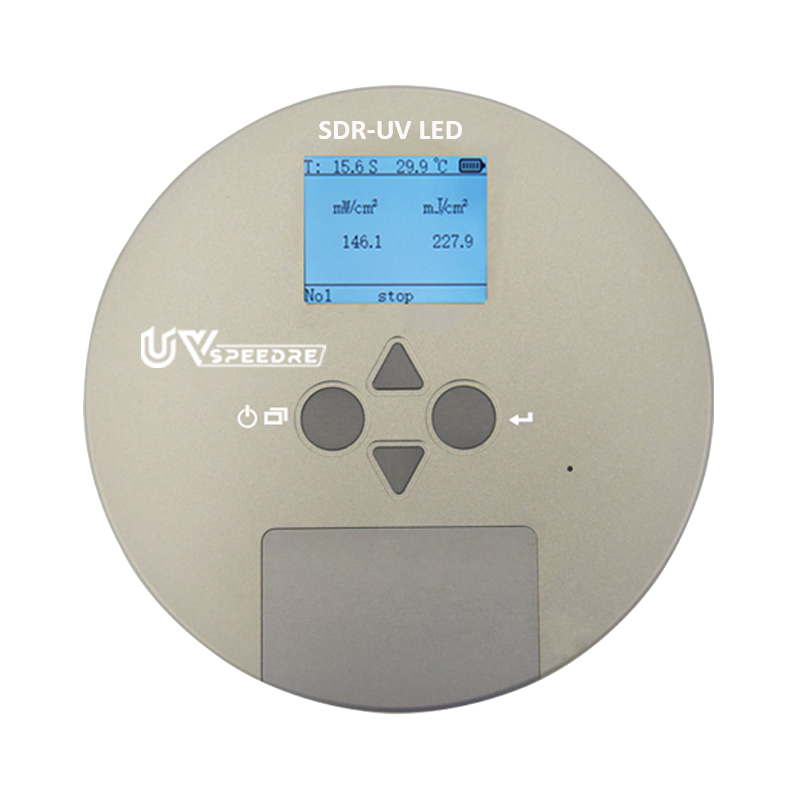

370-420nm UV LED UV Energy Meter SDR-UV LED

    370-420nm UV LED UV Energy Meter SDR-UV LED

Description:

SDR-UV LED UV energy radiation meter is a high-precision and high-efficiency UV energy radiation detection instrument, mainly suitable for electronic components industry, spraying industry, UV coating industry, printing industry and other types of needs for testing high pressure mercury lamp, low pressure mercury lamp, xenon lamp, Detection of light intensity and energy of mercury lamp, halogen lamp, printing lamp, light cleaning lamp, optical disc special lamp, ultraviolet iron lamp, short-arc xenon lamp. The SDR-UV LED UV energy meter can not only test UV energy and light intensity, but also test temperature, truly allowing one machine to meet your different needs


Product Advantages:

Test UV energy, UV light intensity and temperature at the same time

It can observe the change of UV power test curve, UV energy test curve and temperature test curve at the same time.

The instrument has recording function and can store a large amount of data

The SDR-UV LED UV energy meter has computer analysis software to export reports

The instrument unit can be switched independently to meet the various needs of different customers


Product Parameters:

● Spectral Range: UV LED (370-420nm), λ:395nm

● Measurement range: 0.1-20000mw/cm², 0-999999mj/cm² (default) ; 0.1-20000uw/cm², 0-999999uj/cm² (optional)

● Measurement accuracy: ±5%

● Resolution: 0.1mw/cm²

● Power storage interval: 0.1s/time

● Temperature storage interval: 0.1s/time

● Range of Working Temperature: –55°C to 125°C

● High accuracy over full temperature range: -55℃ ~ -10℃: ±1℃; -10°C ~ 85°C: ±0.5°C; 85℃ ~ 125℃: ±1℃

● Data Storage Duration: 5 sets of data, with a total duration of 15 minutes

● Measurement Mode: Automatic measurement mode, manual measurement mode

● Data Transmission: Yes

● Analyzing Software: Yes

● Sampling Speed: 0.01s/time

● Unit Conversionw/cm², j/cm² ; w/m², j/m² (default range switching unit)

● Screen: Color LCD screen

● Power Supply: AA batteries

● Instrument Size: Diameter120mm*Height 13mm

● Instrument Weight: 180g

● Packaging Weight: 1200g

● Carton size: 240mm*205mm*80mm


Product Features:

★ Intelligent UV energy radiation recorder, automatic identification of testing wavelength range

★ Color screen displays UV energy, UV light power, temperature, and test duration

★ USB interface data transmission, connected to computer software to read recorded data, perform data analysis, and export test reports

★ High precision temperature sensor, fast and real-time response to test temperature

★ Large capacity data storage, manual mode can store 5 sets of 3-minute data sets cyclically,and automatic mode can store continuously for 15 minutes

★ The stored data will not be lost after power failure, and the system will automatically ask whether to delete the previous data upon startup



Packing List:

SDR-UV LED UV Energy Meter

1set

Software U Disk

1pcs

USB Data Cable

1pcs

Screwdriver

1pcs

Manual

1pcs

Certificate/Warranty Card

1pcs

Carry box

1pcs
