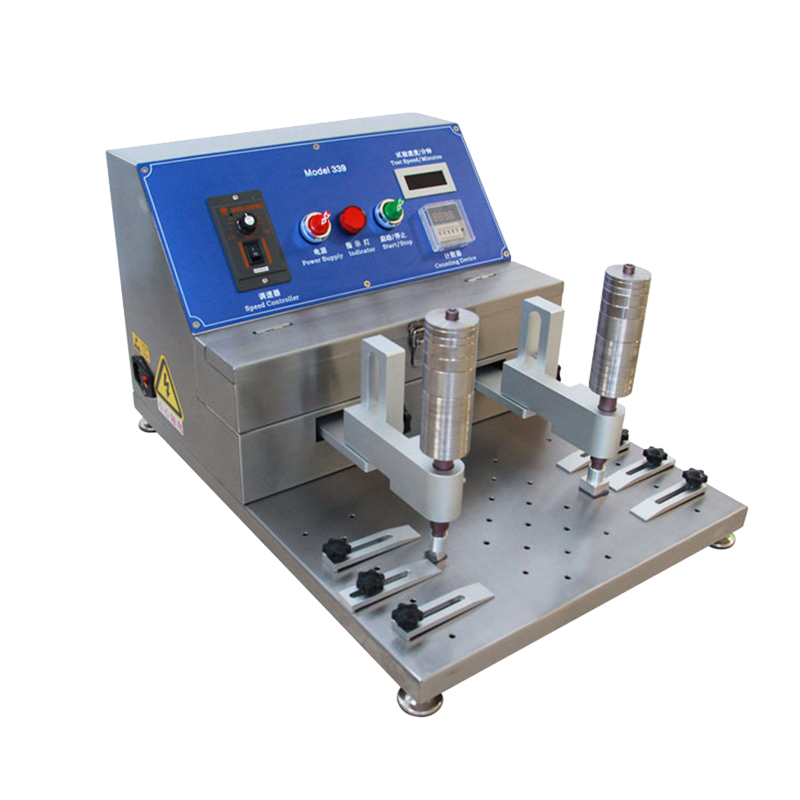

_Multifunction Friction Testing Machine SDR-339

Description:

The friction testing machine is suitable for all kinds of non-conductor coating layers, all kinds of plastic products oil injection, silk screen surfaces for friction test, such as computers, mobile phones (P.D.A), MP3, CD/VCD/DVD, cordless phone, electronic dictionary, etc., the friction testing machine can also be used as LCD nod fatigue test and handwriting stroke test;

It can use the eraser, artificial sweat, steel velvet, or alcohol friction sample surface to determine the wear resistance of the sample.

Parameters:

Simultaneous Test Sample	2pcs
Testing Load	80-1000g
Maximum Load Bearing	5kg
Move Adjustable Range	2~25mm / 10~50mm
Testing Speed	10~60 times /min(adjustable)
Load weights	10g, 20g, 25g, 50g, 100g, 200g, 500g
Power Supply	220V / 5A
Size	634537cm(LWH)
Weight	About 30kg
Speed input mode	Rotary knob
Friction frequency	The speed frequency can be adjusted without section
Test space	The test rod can be adjusted up and down to the required distance

Product Feature:

● Friction testing machine materials are made of stainless steel, good corrosion resistance;

● The friction testing machine is equipped with three kinds of fixtures :45° pencil hardness scratch test fixture, eraser test fixture, alcohol test fixture, can be used for pencil hardness scratch test, rubber sassafras, alcohol wear test;

● Friction frequency: no stage type can adjust the speed frequency, and digital display speed;

● Friction counter: 6-bit preset LCD display counter, with power failure memory function, automatically stop when you reach the set number;

● Test round trip rate: 10 ~ 60 times /min continuously adjustable;

● Friction distance: 10mm ~ 50mm can be freely adjusted;

● The test rod can be adjusted up and down to the required distance.
